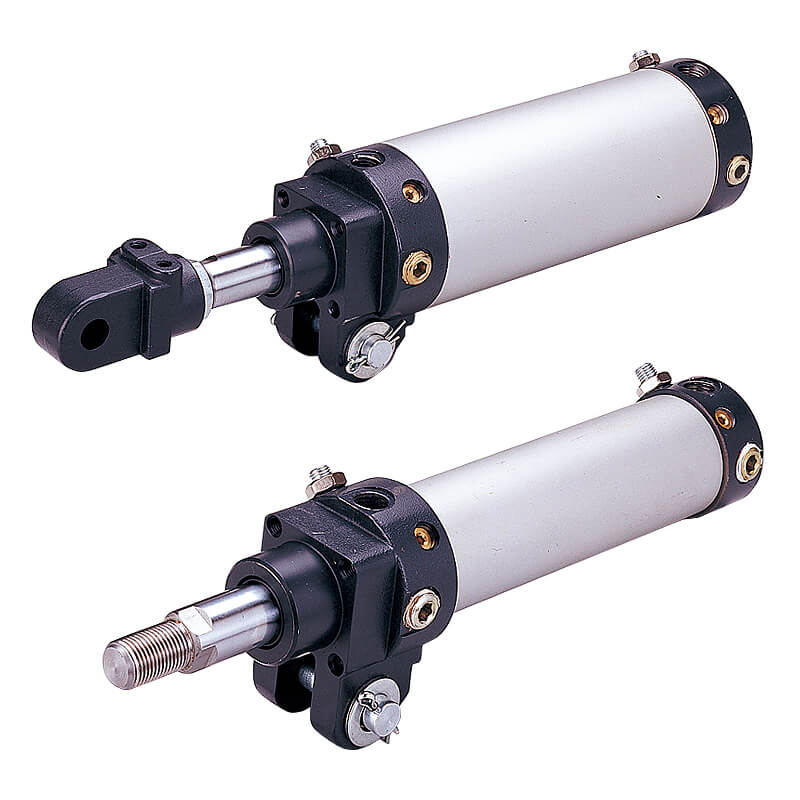

MCKA Clamp Cylinders

Tube I.D. φ 40 (mm). Self-lubricating bush and wearing ring for longer lifetime. Multiple piping location.

Product Feature

The cylinder tube is made of aluminum alloy and treated with alumina, which is more wear-resistant and corrosion-resistant.
Self-lubricating bush and wearing ring for longer lifetime.
Multiple piping location.
The cushion type can effectively reduce the impact on the cylinder cap.
Optional magnet with sensor.

Acting type	Double acting
Tube I.D. (mm)	40
Medium	Air
Operating pressure range	0.05~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	－5℃~＋60℃(No freezing)
Lubricator	Not required
Available speed range	50~500mm/sec
Cushion	With adjustable cushion at both ends
Sensor switch	RCA
傳感器束帶	PN-A40
